Xtend™ Capillary Microarray Pins and Print Heads

Xtend Microarray Pin

HIGHLIGHTS

- Excellent spot uniformity and deposition repeatability
- Controllable uptake volume
- Equally effective on glass and membrane surfaces
- Zero cross-sample contamination
- Zero evaporation during printing cycle
- No prespotting required
- Absolute chemical inertness and corrosion resistance
- 100 times tougher than glass
- Easy handling

PRICE

Part Number Name Price
Order Quantity
1-16 pc     17+ pc
007-080 Xtend Pin 80um diameter $250         $200
007-100 Xtend Pin 100um diameter $250         $200
007-130 Xtend Pin 130um diameter $250         $200
007-140 Xtend Pin 140um diameter $250         $200
007-200 Xtend Pin 200um diameter $250         $200
007-300 Xtend Pin 300um diameter $250         $200
007-350 Xtend Pin 350um diameter $250         $200
007-500 Xtend Pin 500um diameter $250         $200
007-700 Xtend Pin 700um diameter $250         $200

* Indicated prices are for direct sales from LabNEXT. On some markets LabNEXT sells only through distributors. Distributor prices may vary significantly. Please check our Order page for distributor list and other ordering information.

SPECIFICATIONS

Part Number

Tip Diameter (mm)

Capillary Diameter (mm)

Number of Spots per 20x70mm Chip Area

Deposition Volume (nL) Glass/Membrane

Uptake Volume (nL)

Number of Spots per Pick-up Glass/Membrane

007-080 0.080 0.015 up to 50 000 0.3 / 1 5-300 700/200
007-100 0.100 0.020 up to 50 000 0.4 / 1.5 5-300 500/150
007-130 0.130 0.036 up to 40 000 1 / 5 5-300 300 / 60
007-140 0.140 0.030 up to 35 000 1 / 5 5-300 300 / 60
007-200 0.200 0.048 up to 22 000 1.8 / 8 5-300 165 / 36
007-300 0.300 0.064 up to 9 000 2.2 / 10 5-300 135 / 30
007-350 0.350 0.102 up to 7 000 3 / 15 5-300 100/ 20
007-500 0.500 0.140 up to 1500 5 / 25 5-300 60 / 12
007-700 0.700 0.178 up to 1000 7nl / 35 10-300 40 / 8


NOTE: Please refer to the LabNEXT Online Docs for more specifications and application notes. Xtend Pins Application Manual

FEATURES

Excellent Spotting Uniformity
Deposition through capillary channel significantly improves spots uniformity compare to split pins even when printing liquids with different viscosity.
Deposition Repeatability
Capillary construction allows deposition of equal amount of liquid regardless of the viscosity and outer conditions such as temperature and humidity.
Controllable Uptake Volume
Typically microarray printing pins uptake DNA material enough for hundreds of spots but deposit only a few dozens. The remaining material is wasted in the washing apparatus before the next sample pick-up. Precious biological material can be saved for further prints if pins could uptake the amount of liquid only necessary for deposition of the required number of spots. In LabNEXT printing pins deposition capillary is followed by big volume channel that allows pick-up amount of liquid enough for hundreds of spots. Volume of liquid that pins pick up depends on how long the pins were submerged in the liquid. Xact Microarrayer has relevant software settings that allow to control uptake volume and pick-up only minimal required amount of it.
Zero Evaporation
Due to tubular construction liquid is enclosed inside the needle and does not evaporate during the printing run.
Zero Cross-sample contamination
Simple shape of needle dramatically simplifies and improves cleaning process and along with ultra-smooth inert ceramic surface of the needle completely eliminates risk of cross-sample contamination. Cleaning equipment and procedures are also greatly simplified compare to the split pins.
Low Prespotting Requirements
Using Xtend printing pins allows to save on prespotting slides. Due to the smooth non-adhesive finish pins do not accumulate excessive liquid on outer surface. 2 prespotting hits are enough to start printing uniform spots. Only one prespotting slide is required for the most of printing jobs.
Chemical Inertness
LabNEXT composite pins are made of chemically inert material that does not contaminate printing substance - the problem very common to pins made of metal.
Corrosion Resistance
LabNEXT pins can withstand aggressive chemical environment and can operate and be cleaned with strong acids and solvents.
Wear Resistance
Xtend Pins made of the material that wears out 10 times slower than glass. The pins can make millions hits without noticeable change of the geometry. LabNEXT pins last 100 times longer than any metal pins.
Easy Handling
Xtend pins are more forgiving in handling than most of the other pins on the market partially due to the strength of the material they made of and partially due to the more rigid tubular construction.

Xtend Plate Microarray Pins

Xtend Plate pins feature thinner shaft to provide more free space inside a microplate well. Their diameter is 1.8mm vs 2.4mm for regular Xtend and Xtend RM microarray pins. 0.6 mm extra space allows a few more rows and columns of spots to be deposited inside the well.
Xtend Plate pins are also 5mm longer than the regular version to provide access to the deep well microplates.

Xtend Plate Printing Microarray pins

All printing parameters of Xtend Plate pins are equal to the regular Xtend pins as they feature the same capillary tips.

NOTE: Xtend Plate pins require print head with thinner holes. They can not be used with the regular print head.

Prices of Xtend RM pins are the same as the regular Xtend pins shown above.
Part numbers: 008 - _ _ _

Xtend RM Microarray Pins

Xtend RM is a 5mm longer version of the regular Xtend pins. They can serve as a replacement for discontinued MATRIX pins.

Xtend RM Microarray pins Original Matrix pins

All printing parameters of Xtend RM pins are equal to the regular Xtend pins as they feature the same capillary tips.


Prices of Xtend RM pins are the same as the regular Xtend pins shown above.
Part numbers: 0037 - _ _ _

LabNext Standard Microarray Print Heads

Standard LabNEXT print heads fit XactII and THOMAS microarray systems. For using them in the systems of other vendors corresponding head holders or mounting converters are required.
We manufacture head holders for various microarrayers of other vendors. Contact LabNEXT sales department with information about your system.

16 pin Microarray Print Head

PRICE

Part Number Name          Price
0296-16       Microarray Print Head 16 Pins ( 4 x 4 pattern )         $700
0296-8       Microarray Print Head 8 Pins ( 4 x 2 pattern)         $600
0296-4       Microarray Print Head 16 Pins ( 4 x 1 pattern )         $450


Print Heads and Head Holders for Microarrayers of Other Vendors

We manufacture head holders for various microarrayers of other vendors. Contact LabNEXT sales department with information about your system.
Head adapters allow installation of standard LabNEXT microarray print head in place of print heads of other vendors, without modifications of the original head holder.

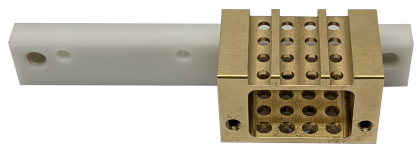

Adapter for installing LabNext microarray Head in place of ArrayIT head
Adapter for installing LabNEXT print head in place of ArrayIT 48 pin print head

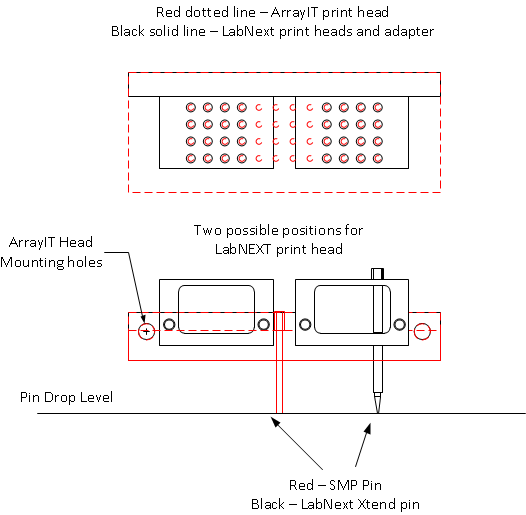

Installation diagram for LabNEXT head adapter
Adapter positions tips of LabNext pins close to the positions of ArrayIT pins.
Minimal recalibration of the microarryer is required.


For microarrayers with proprietary head mounting system we manufacture custom holders that allow installation of the standard LabNext print head.

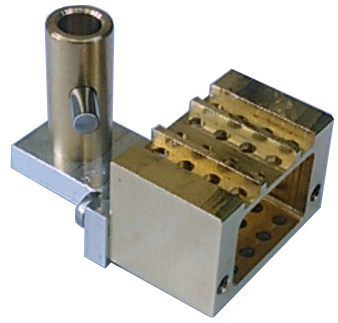

LabNext Microarray Print Head installed with head holder for MicroGrid arrayer LabNext Microarray Print Head installed with head holder for MicroGrid arrayer
Standard LabNext Microarray Print Head installed with head holder for MicroGrid arrayer.


PRICE

Part Number Name          Price
0450-48       LN-ArrayIT( 48 pin ) Head Adapter         $150
0450-36       LN-ArrayIT( 36 pin ) Head Adapter         $150
4781       Head Holder for MicroGrid Arrayer         $350
