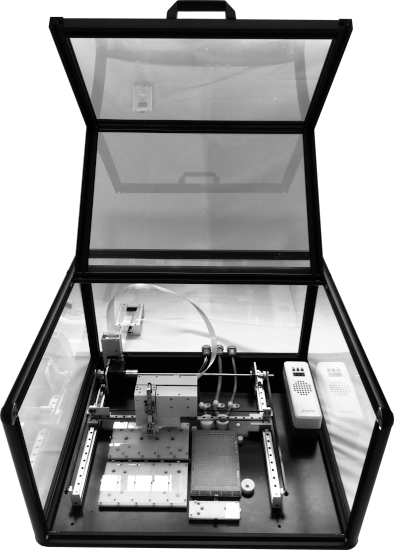

B00cartesian™ Compact Microarrayer

Compact and capable microarray system for the fabrication of all types of microarrays on glass, membrane surfaces, or on the bottoms of microplates.

B00 cartesian Microarrayer


Part Number Name Price Includes
B00-210 B00cartesian™ Microarrayer $12000 - Microarrayer
- 4 Xtend Pins (any diameter)
- 4 positions Print Head ( any configuration )
- 10 position slide holder
- 1 position prespotting substrate holder
- 2 plate holders for microplate printing
- Peristaltic Pump (dual head)
- Control Software
- Program Editor Software
- Monitor 10"
- Wireless keyboard and mouse
B00-091 Microplate Cooling Option $900 - Microplate Cooling Holder
- Peristaltic pump (single head)
140 Humidification Option $600 - Electronic Humidifier

* Indicated prices are for direct sales from LabNEXT US. On some markets LabNEXT sells only through distributors. Distributor prices may vary significantly. Please check our Order page for distributor list and other ordering information.



- Printing Method: Contact printing with Xtend™ microarray pins. Custom heads for pins from other vendors are available..
- Number of printing pins: 4 standard. Any number with print head upgrade.
- Microarray substrates capacity: 10 slides or 2 microplates + 1 prespotting slide
- Source plates capacity: 1 plate.
- Source plates formats compatibility: 96, 384. Custom labware can be used.
- Slide locks: independent. The system can accommodate from 1 to 10 slides in any positions.
- Pins cleaning technology: fluid stream washing, vacuum drying.
- Print layouts: Practically unlimited regular or irregular patterns
- Throughput: 30 sec per print cycle (Print cycle: Wash, Dry, Pick-up, Pre-spot, Deposit on 5 slides).
- Sample Cooling: Cooling source plate holder (optional item).


- Accessible operating area: Width(X): 230mm Depth(Y):200 Height(Z): 50 mm
- Resolution: X, Y - 0.05 mm, Z - 0.05 mm (spacing between two nearest possible spots)
- Absolute accuracy: X, Y - 0.05 mm, Z - 0.05 mm. (accuracy of positioning the most remote from the origin spots within the work area)
- Repeatability within the same run: X, Y - 0.05 mm, Z - 0.01 mm (accuracy of returning to the same spot without run interruption.)
- Repeatability after run interruption: X, Y - 0.05 mm, Z - 0.05 mm (accuracy of returning to the same spot after the system has been stopped and re-initialized)


- Dimensions: 19.6" X 11.8" X ( 500mm X 450mm X 300mm )
- Power supply: 110V-220V AC
- Lab facilities: Vacuum. Portable vacuum pump can be used. Pump performance L/Min(cfm): 25 (0.88)
